1D Line

Operator Function

Find line segments in the ROI of the input image.

Parameter Introduction

Input Parameters

Parameter	Range	Default Value	Description	Illustration
Input Image	0-8	0	IM number for image input

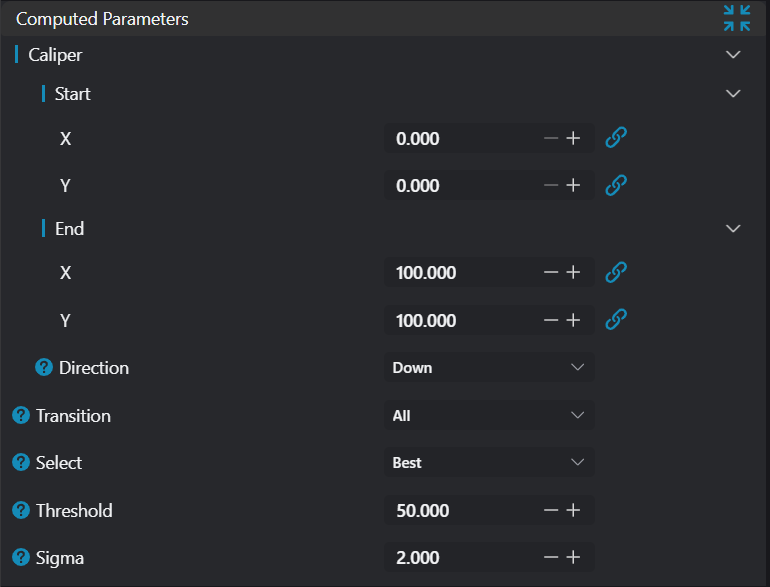

Calculation Parameters

Parameter	Range	Default Value	Description	Illustration
Caliper			Set the start and end points of the caliper
Direction	Downward/Rightward	Downward	Downward: Find line segments downward Rightward: Find line segments rightward
Transition	Positive/Negative/All	All	Positive: Transition from black to white Negative: Transition from white to black All: Both transitions
Selection	First/Last/Best	Best	First: The first point found that meets the threshold Last: The last point that meets the threshold Best: The point with the largest threshold change
Threshold	Numerical Range	50.000	Refers to the gradient threshold. When the grayscale value of the image changes significantly, the gradient value is larger; when the grayscale value changes slightly, the corresponding gradient value is smaller.
Standard Deviation	Numerical Range	2.000	Standard deviation for smoothing gradient changes.

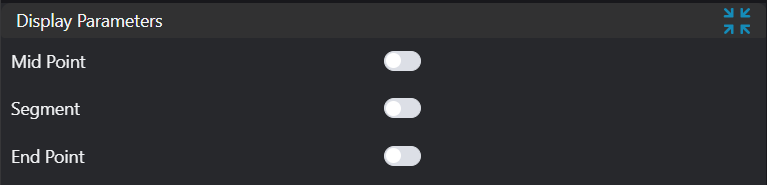

Result Display

Parameter	Range	Default Value	Description	Illustration
Mid Point	true/false	false	If enabled, display the center point of the line segment on the IM image.
Line Segment	true/false	false	If enabled, display the line segment on the IM image.
End Points	true/false	false	If enabled, display the two endpoints of the line segment on the IM image.

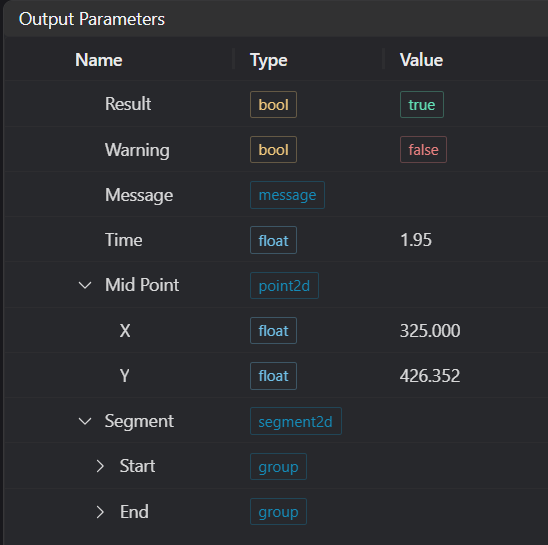

Output Parameters

Name	Type	Range	Description
Result	bool	true/false	true for success false for failure
Warning	bool	true/false	true indicates a warning false indicates no warning
Message	string		Output success, error, or warning messages. Empty if no error or warning.
Time	float		Operator execution time, unit: ms
Mid Point	point2d		The center point of the found line segment.
Segment	group		The found line segment.

Exception Troubleshooting

No.	Exception Information	Corresponding Parameter	Solution
1	Not Found		1. Lower the threshold 2. Check if the polarity is correct
2	ROI Too Small		The ROI size must exceed 3×3.
3	Input Image Is Empty		Check if the input image is empty.

Example Introduction

Engineering Design

1. Select the Load Image tool to load the 2D image that needs processing.

2. Select the 1D Line Tool.

Tool Usage

1. Select the input image for the operation. The image number must match the IM number where the image is located in the project.

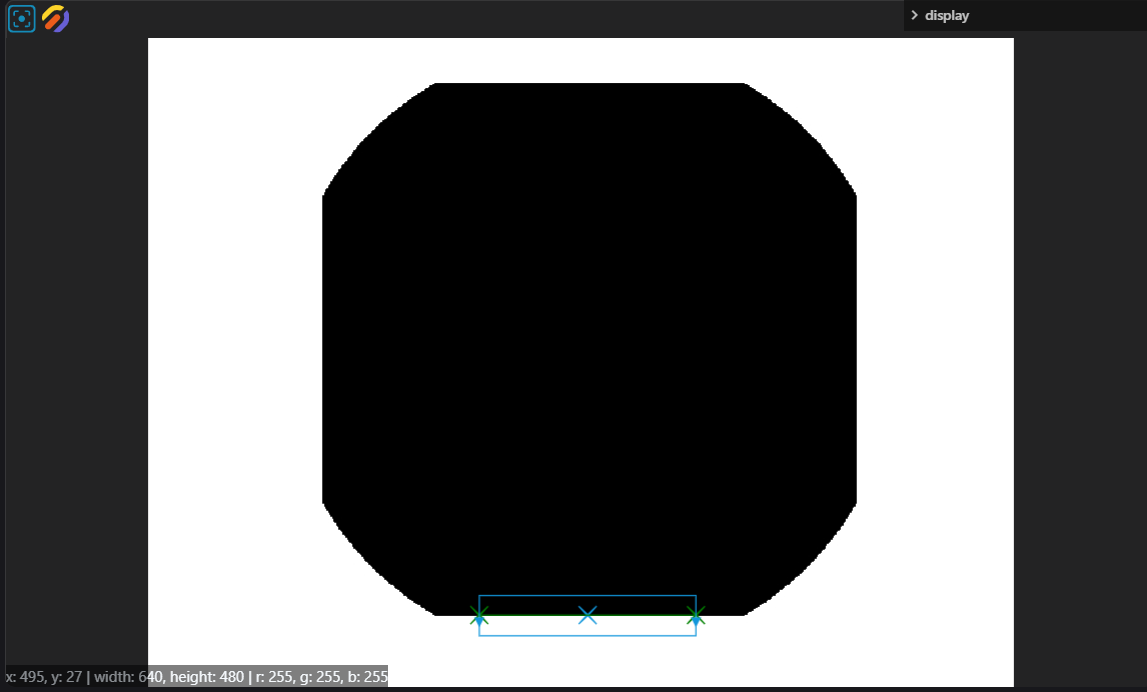

2. Use the caliper to select the region where the line needs to be found.

::: Warning Tips 1. Use the ROI controller on the image window to drag or scale the caliper; 2. Directly modify the caliper parameters (such as start and end points) in the calculation parameters to set the caliper; :::

3. Set the parameters.

4. Check the content you want to display in the result display section.

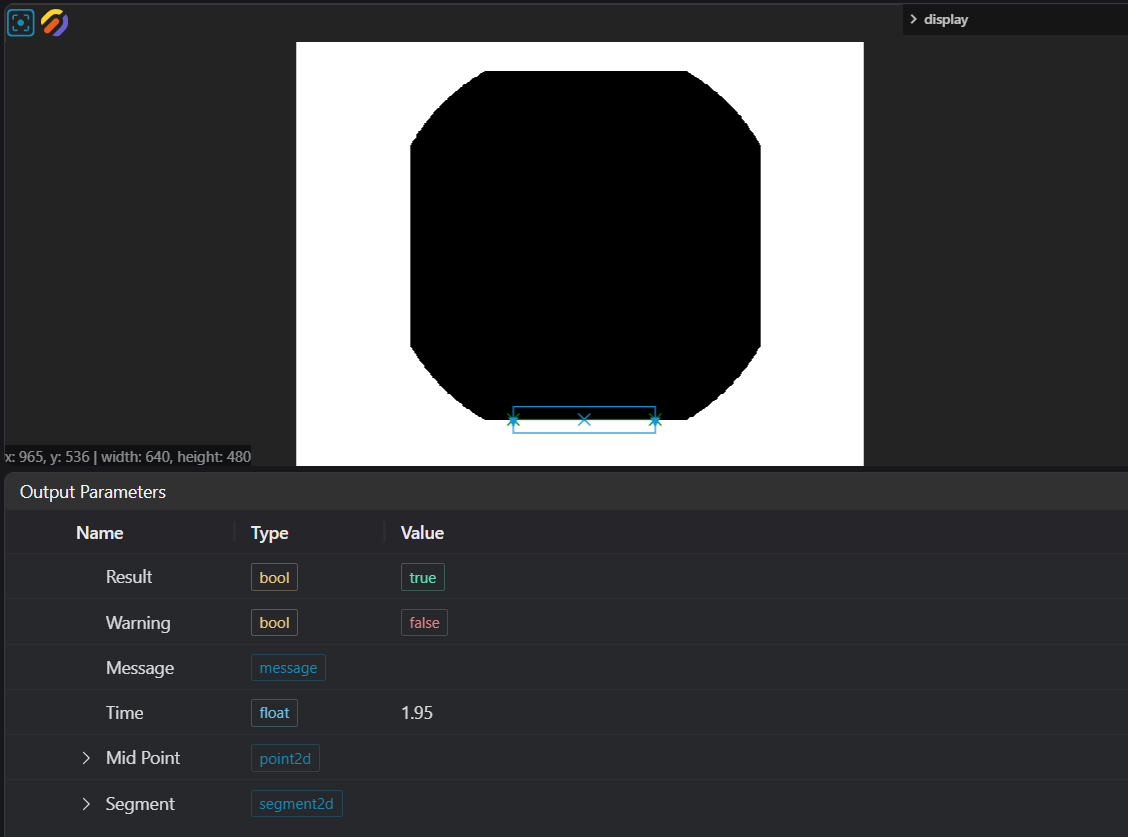

5. Click Test to check if the image window and parameters meet expectations.

6. If there are no issues, click Save. Run the operator in the run list, and then view the running results in the corresponding IM.
