Pin Recipe Creation

Operator Function

This operator outputs the recipe file for pins. It can be used with standard part point cloud images to generate .json recipe files for pins. Note: The standard part point cloud used must be preprocessed.

Parameter Introduction

Input Parameters

Parameter	Range	Default Value	Description	Illustration
Input Image	0-8	0	The IM number for image input

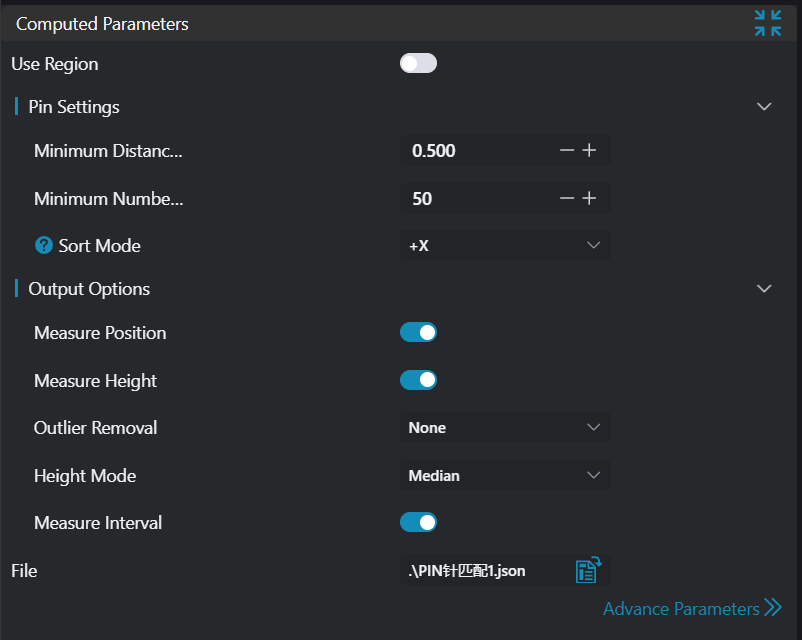

Calculation Parameters

Parameter	Range	Default Value	Description	Illustration
Use Region Parameters	true/false	false	If enabled, use Region as input; if not enabled, use Input Image as input
Region	2D Window/2D Circular Window/2D Polygon Window/Box/Cylinder Box/Rotated Box/Point Set (binding only)	Box	Manually select an appropriate ROI region Can bind to select existing ROI regions
Pin Minimum Spacing		0.5	Minimum distance between two pins
Pin Minimum Points		50	Minimum number of points for a pin
Sorting Method	+X/-X/+Y/-Y	+X	+X: Pins sorted from left to right, top to bottom -X: Pins sorted from right to left, bottom to top+Y: Pins sorted from right to left, bottom to top -Y: Pins sorted from right to left, bottom to top
Pin Position	true/false	false	If enabled, output X, Y coordinates of each pin
Pin Height	true/false	false	If enabled, output pin height information
Outlier Removal	Percentile Filter/None		Only enabled when pin height measurement is enabled; select filtering method
Low Removal Percentage	0.000-50.000	10.000	Remove noise points in the low Z direction according to this ratio. For example, when the ratio is set to 10%, remove the lowest 10% of points
High Removal Percentage	0.000-50.000	10.000	Remove noise points in the high Z direction according to this ratio. For example, when the ratio is set to 10%, remove the highest 10% of points
Height Mode	Minimum, Maximum, Mean, Median, Standard Deviation, Percentile	Median	Provide 6 methods for calculating height
Percentage		10	Enabled when mode is Percentile; input percentile, e.g., input 50 to take the middle 50% of points for height calculation
Pin Spacing	true/false	false	If enabled, output pin spacing information
File		Empty	Select file save path (only supports .json files)
Pin Offset		1.000	Set the offset in X or Y direction for pin sorting; if within the offset range, considered in the same row/column

Result Display

Parameter	Range	Default Value	Description	Illustration

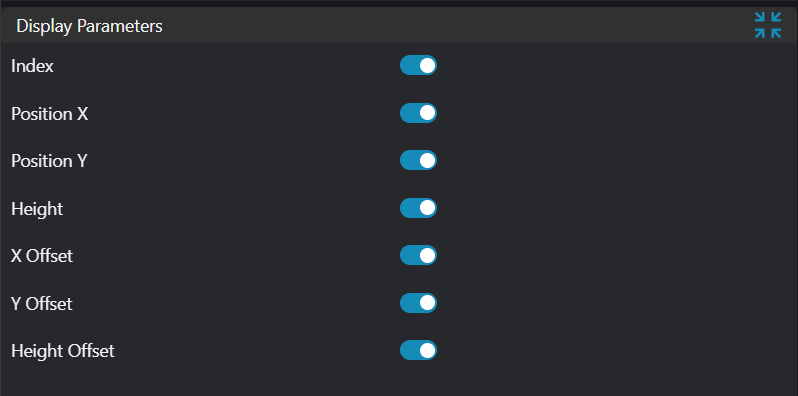

Sequence Number	true/false	false	Pin sequence number; if enabled, displayed in the image
X Coordinate	true/false	false	Pin X coordinate; if enabled, displayed in the image
Y Coordinate	true/false	false	Pin Y coordinate; if enabled, displayed in the image
Height	true/false	false	Pin height; if enabled, displayed in the image
X Offset Value	true/false	false	Pin X offset value; if enabled, displayed in the image
Y Offset Value	true/false	false	Pin Y offset value; if enabled, displayed in the image
Height Offset Value	true/false	false	Pin height offset value; if enabled, displayed in the image
ROI Point Set	true/false	false	Only effective when Use Region Parameters is selected; the point set of the ROI selected region; if enabled, displayed in the image

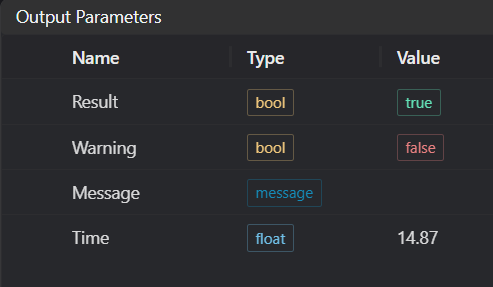

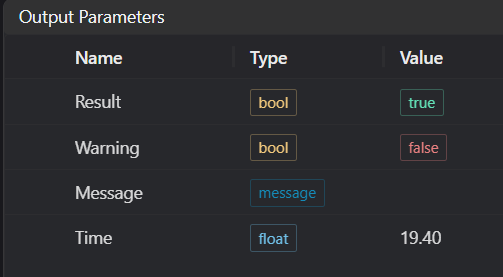

Output Parameters

Name	Type	Range	Description
Result	bool	true/false	true for success false for failure
Warning	bool	true/false	true indicates there is a warning false indicates there is none
Message	string		Outputs success, error, or warning information; if there is no error or warning, it is empty
Time	float		Operator execution time, unit: ms

Tip

For more detailed explanations of parameter types, please refer to Type Definitions

Exception Troubleshooting

No.	Exception Information	Corresponding Parameter	Solution
1	Input region type is {0}, invalid region type	Region Type	Region input type must be one of: 2D Window/2D Circular Window/2D Polygon Window/Box/Cylinder Box/Rotated Box/Point Set
2	Region is empty		1. Check if selection is empty 2. Check if point set is empty
3	Input point cloud is empty		Confirm if IM contains valid points; if no valid points, load point cloud or switch to IM with valid points
4	Pin extraction failed		Modify pin setting parameters
5	Input sorting method is {0}, invalid sorting method	Sorting Method	Select sorting method as one of +X/-X/+Y/-Y
6	Input height mode is {0}, invalid sorting method	Height Mode	Select mode as Maximum/Minimum/Median/Mean/Removal Percentage
7	File "{0}" does not exist or cannot be accessed	File Path	Input valid recipe path
8	File "{0}" failed to save	File Path	Input valid path and must be a json file
9	Input polygon vertex count is less than 3, cannot form a polygon		Add 2D polygon window vertices so that the vertex count is at least three

Example Introduction

Engineering Design

1. Select the Load Point Cloud tool to load the 3D point cloud image to be processed into IM0;

2. Select the 3D Region tool to select the region for plane fitting;

3. Select the 3D Plane tool, using the output of the 3D Region tool as input, fit a plane and transform the point cloud;

4. Select the 3D Square Probe tool to search for positioning points;

5. Select the 3D Position Adjustment tool, using the positioning point as the new origin, adjust the point cloud position;

6. Select the 3D Crop tool to crop the pin point cloud;

7. Select the 3D Transformation tool to adjust the pin point cloud to a suitable position;

8. Select the Pin Recipe Creation tool.

Tool Usage

1. Select the input image for operation; the image number must match the IM number where the image is located in the project.

2. Either do not enable Use Region Parameters, or enable region and select region type as Box, move the box to the position to be measured, enclosing the point cloud to be measured.

Usage Tips

1. Use the ROI controller on the image window to drag or scale the box;
2. Directly modify the start or end coordinates of the box in the calculation parameters to adjust the box position and size.

3. Set parameters.

4. Check the content you want to display in the result display section.

5. Click Test to check if the image window and parameters meet expectations.

6. If there are no issues, click Save, then run the operator in the run list to view the results in the corresponding IM.
