3D Point Cloud Stitching

Project Background

Measurement Background

For large-size materials, the camera is moved for multiple collections, and overall stitching is completed by combining 3D point cloud stitching.

Camera Selection

Keyence LJ-X8000

Project Process

1. Initialization

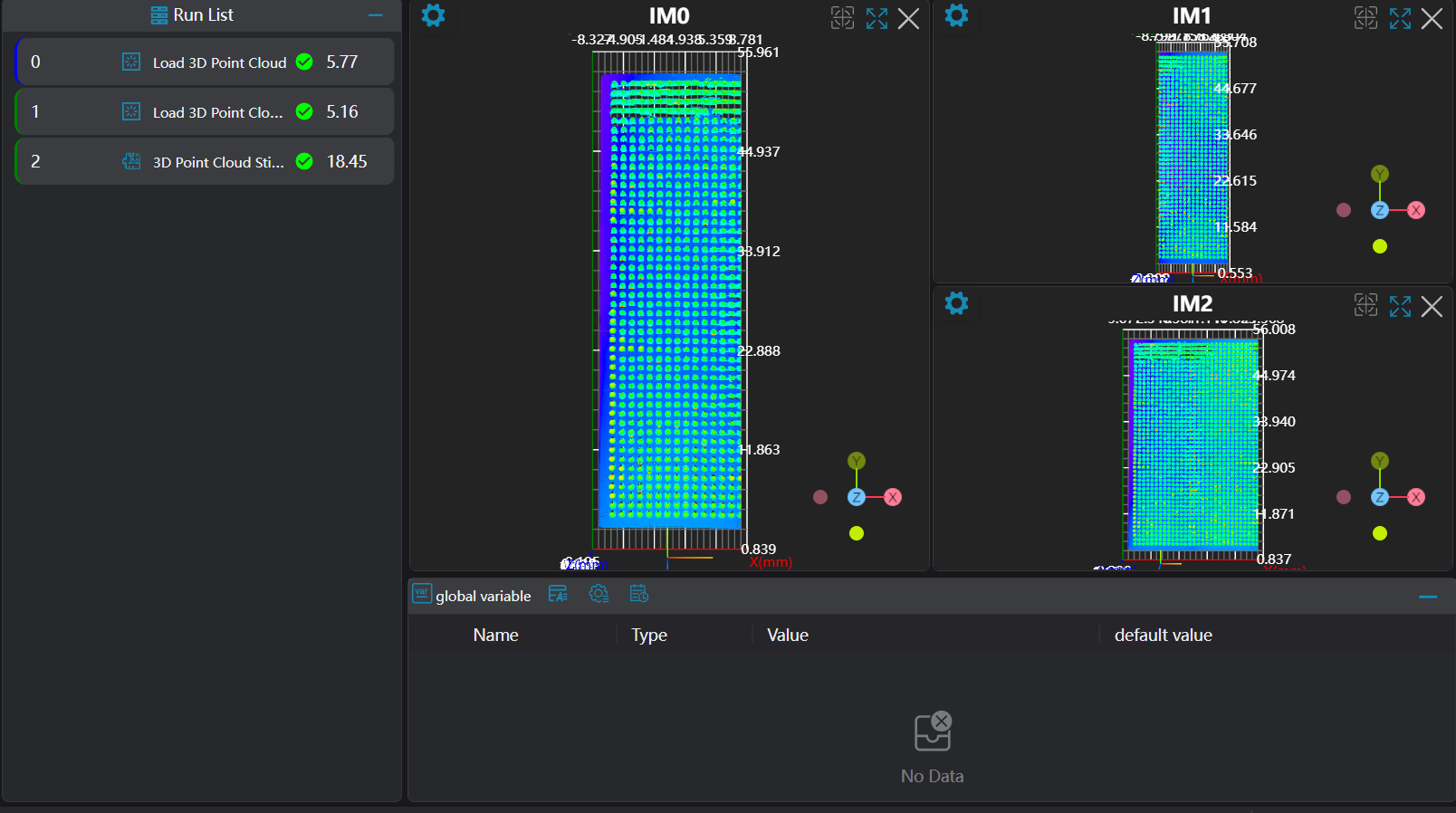

Use the Load Point Cloud tool to load the point cloud images to be processed.

2. Stitch Point Clouds

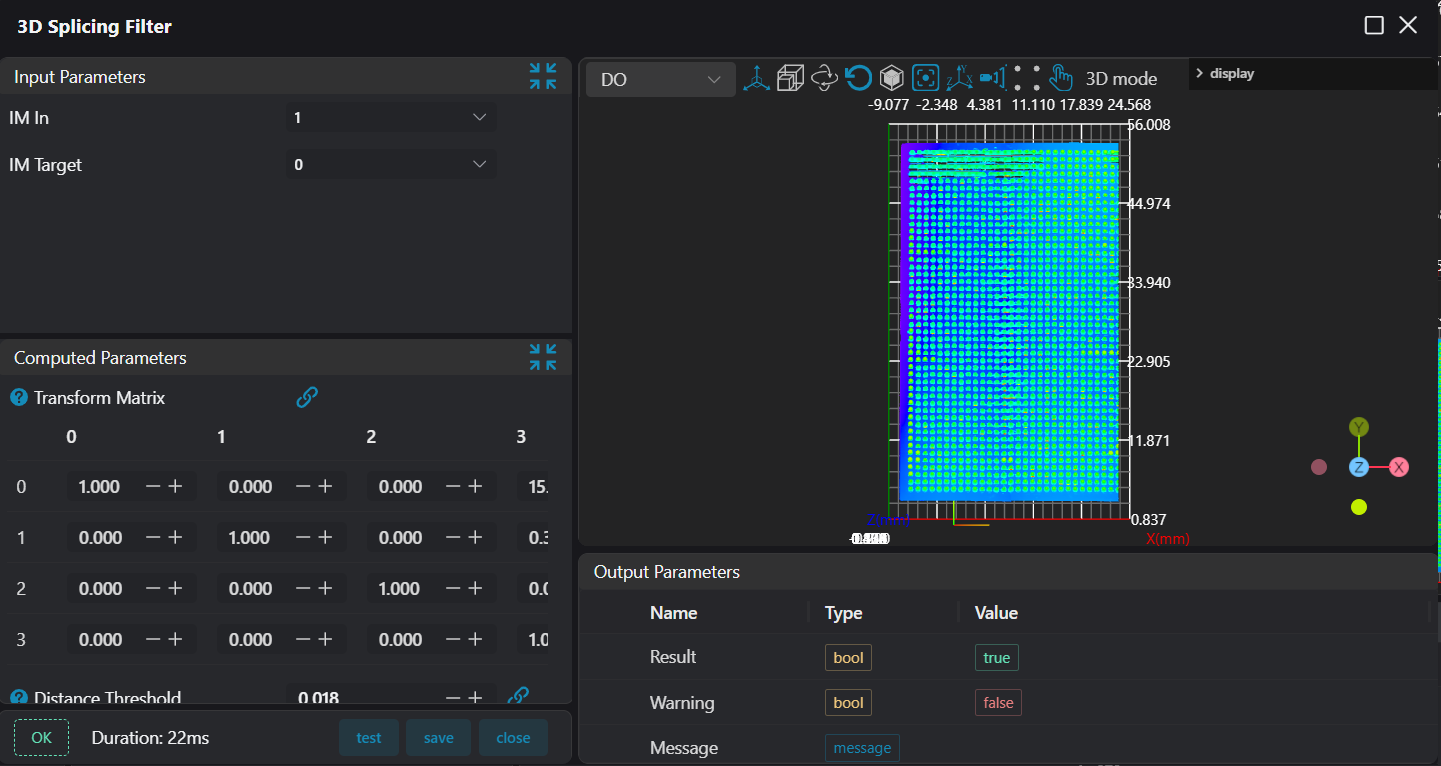

Use the 3D Point Cloud Stitching tool to stitch the point cloud images to be processed.
