3D Coplanarity - Regression Plane Method

Operator Function

Use the regression plane method to calculate coplanarity deviation
Input needs to bind several point cloud arrays to be measured

Principle Explanation:

1. Extract the highest points of each terminal point cloud
2. Use the least squares method to determine the best fitting plane for all terminal vertices as the least mean square plane
3. Calculate the plane parallel to the least mean square plane and passing through the lowest vertex as the lowest sphere reference plane
4. The least mean square plane is parallelly offset to the terminal vertex showing the maximum vertical distance. The distance from the offset least mean square plane to the terminal farthest from the offset least mean square plane is the component's coplanarity deviation

Parameter Introduction

Input Parameters

Parameter	Range	Default Value	Description	Illustration
Input Image	0-8	0	IM number for image input

Calculation Parameters

Parameter	Range	Default Value	Description	Illustration
Region	2D Window/2D Circular Window/2D Polygon Window/Box/Cylindrical Box/Rotated Box/Point Set (binding only)	Box	Manually select appropriate ROI region Can bind to select existing ROI region

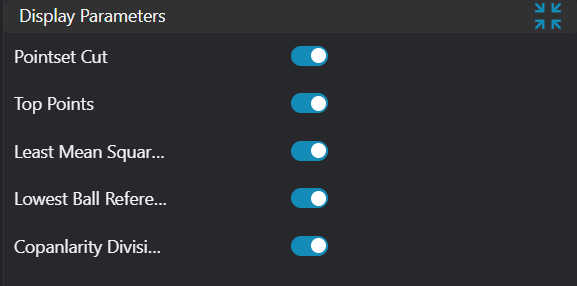

Result Display

Parameter	Range	Default Value	Description	Illustration
Point Set	true/false	false	Input point set. If enabled, display in the image
Vertices	true/false	false	Highest points of each input point cloud. If enabled, display in the image
Least Mean Square Plane	true/false	false	Least mean square plane fitted from all vertices. If enabled, display in the image
Lowest Sphere Reference Plane	true/false	false	Plane parallel to the least mean square plane and passing through the lowest vertex. If enabled, display in the image
Coplanarity Deviation	true/false	false	Calculated coplanarity value. If enabled, display in the image

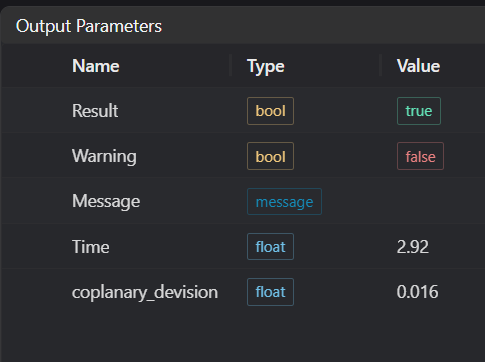

Output Parameters

Name	Type	Range	Description
Result	bool	true/false	true for success, false for failure
Warning	bool	true/false	true indicates a warning, false indicates no warning
Message	string		Output success, error, or warning messages. Empty if no error or warning
Time	float		Operator execution time, unit: ms
coplanarity_deviation	float		Coplanarity

Tip

For more detailed explanations of parameter types, please refer to Type Definitions

Exception Troubleshooting

No.	Exception Information	Corresponding Parameter	Solution
1	Input point cloud is empty		Confirm if IM contains valid points. If no valid points, load point cloud or switch to IM with valid points
2	Input region type is {0}, invalid region type	Region Type	Region input type must be one of: 2D Window/2D Circular Window/Box/Cylindrical Box/Rotated Box/Point Set
3	Input valid regions are {0}, at least 4 valid regions required	Region Count	Check if input ROI selects at least 4 point clouds
4	Input region number {0} is empty	Region Number	Check if these region numbers select point clouds

Example Introduction

Engineering Design

1. Select the Load Point Cloud tool to load the required 3D point cloud image to IM0.

2. Select the Create ROI tool to select the point clouds needed as input.

3. Select the 3D Coplanarity - Regression Plane Method tool, set different output types.

Tool Usage

1. Select the input image for the operation. The image number must match the IM number where the image is located in the project.

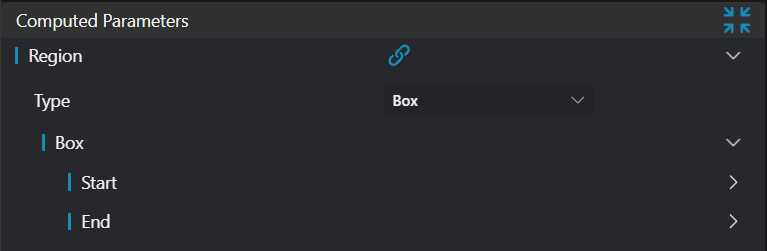

2. Select the region type as Box, move the box to the position to be measured, enclosing the point cloud to be tested.

Usage Tips

1. Use the ROI controller on the image window to drag or scale the box;
2. Directly modify the box's start or end point coordinates in the calculation parameters to adjust the box position and size;

3. Set the parameters.

4. Check the content you want to display in the result display section.

5. Click Test to check if the image window and parameters meet expectations.

6. If there are no issues, click Save. Run the operator in the run list, and then view the running results in the corresponding IM.
