Contour Data Display

Operator Function

Edit the required display data parameters on the contour image and display them on the image.

Parameter Introduction

Input Parameters

Parameter	Range	Default Value	Description	Illustration
Input Image	0-8	0	The IM number for image input

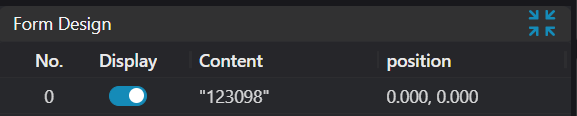

Table Design

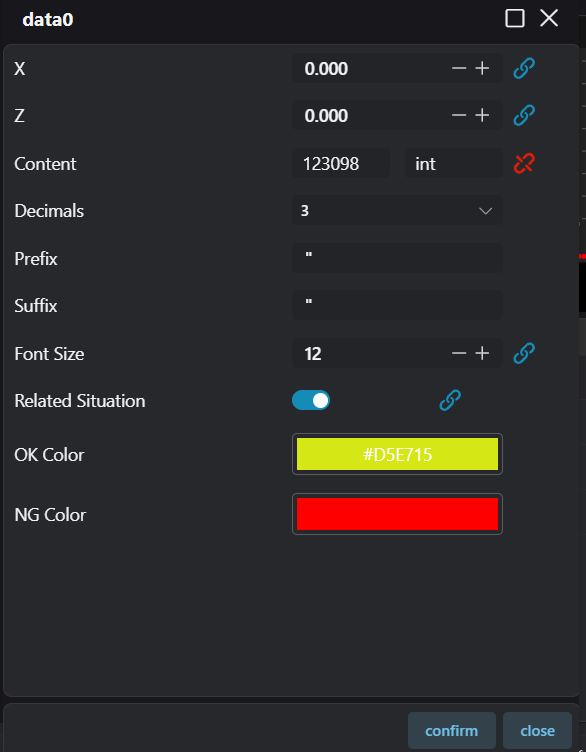

Parameter	Range	Default Value	Description	Illustration
X		0.000	X coordinate of display position
Z		0.000	Z coordinate of display position
Data Content			Content to display, binding only, supports int/bool/string/float four types
Decimal Places	0-6	3	Only enabled when data content is float type, number of decimal places to keep for data content
Prefix			Prefix, text displayed before "Data Content"
Suffix			Suffix, text displayed after "Data Content"
Font Size	1-9999	12	Font size, size of displayed text
Status Association	true/false	true	If true, displays OK color; if false, displays NG color
OK Color		Green	OK color, text color displayed when "Status Association" value is True, default is green
NG Color		Red	NG color, text color displayed when "Status Association" value is False, default is red
Display	true/false	true	If true, displays on IM; if false, does not display

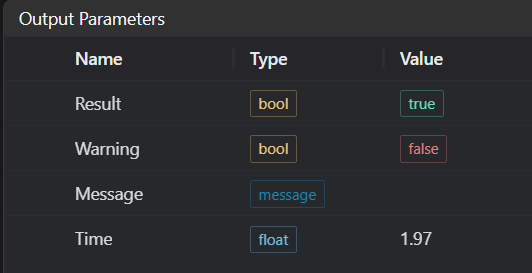

Output Parameters

Name	Type	Range	Description
Result	bool	true/false	true for success false for failure
Warning	bool	true/false	true indicates a warning false indicates none
Message	string		Output success, error, or warning messages. Empty if no error or warning
Time	float		Operator execution time, unit: ms

Exception Troubleshooting

No.	Exception Information	Corresponding Parameter	Solution
1	Image type not supported		Confirm IM is a contour image
2	Input contour is empty		Confirm IM contains valid points

Example Introduction

Engineering Design

1. Select Load Point Cloud tool to load the required 3D image.

2. Select Contour Extraction tool to extract contours from the 3D image.

3. Select Contour Data Display tool.

Tool Usage

1. Select input image for operation. Image number must match IM number where image is located in project.

2. Set input type, content, color, font size, position.

3. Click Test to check if image window and parameters meet expectations.

4. If everything is correct, click Save, then run operator in run list. View results in corresponding IM.
