3D Surface Unwrapping

Operator Function

As shown in the figure, this operator implements the process of projecting a cylinder onto a plane. Based on the input point cloud and fitting parameters, it unwraps the point cloud and outputs the unwrapped planar point cloud.

Parameter Introduction

Input Parameters

Parameter	Range	Default Value	Description	Illustration
Input Image	0-8	0	The IM number for image input

Calculation Parameters

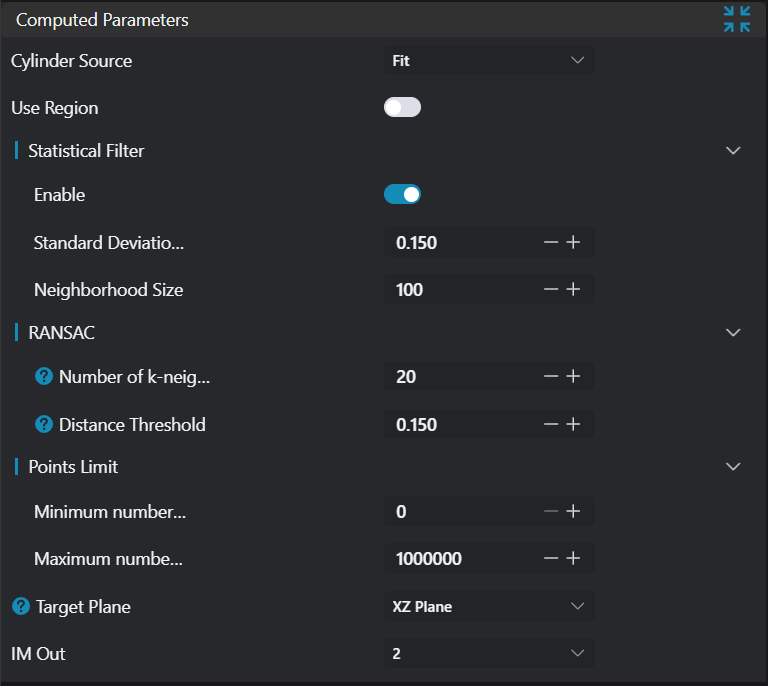

Cylinder Source: Fitting

Parameter	Range	Default Value	Description	Illustration
Cylinder Source	Fitting/Input	Fitting	Fitting: Select the point cloud to be fitted, then fit and unwrap this portion Input: Obtain cylinder parameters from registers or manually, then unwrap the input image
Region	2D Window/2D Circular Window/2D Polygon Window/Box/Cylinder Box/Rotated Box/Point Set (binding only)	Box	Manual selection: Set the ROI region for cylinder fitting > Note: Ensure the ROI center point is within the circle. Can bind to select existing ROI regions
Statistical Filtering	true/false	false	Apply statistical filtering to input point cloud
Standard Deviation Multiple Threshold	0.1-10	0.150	Input parameter n, any point exceeding n standard deviations from the mean will be considered an outlier and removed
Neighborhood Points	3-500	100	Number of neighbor points to consider during filtering (must be less than input point cloud count)
K-Nearest Neighbors	3-500	20	When calculating normal for a point in the point cloud, number of surrounding points to search. If set too high, may include distant points causing inaccuracies; if set too low, may ignore nearby points affecting normal estimation accuracy.
Distance Threshold	0-10000	0.15	When the distance between a data point and the fitted model is less than this threshold, the data point is considered an inlier (conforms to the model); otherwise, it's considered an outlier (does not conform).
Minimum Points		0	Set the minimum number of input point cloud points
Maximum Points		1000000	Set the maximum number of input point cloud points
Target Plane	XY Plane/XZ Plane/YZ Plane	XZ Plane	XY Plane: Unwrap point cloud to XY plane XZ Plane: Unwrap point cloud to XZ plane YZ Plane: Unwrap point cloud to YZ plane
Output Image	0-8	0	The IM number for image output

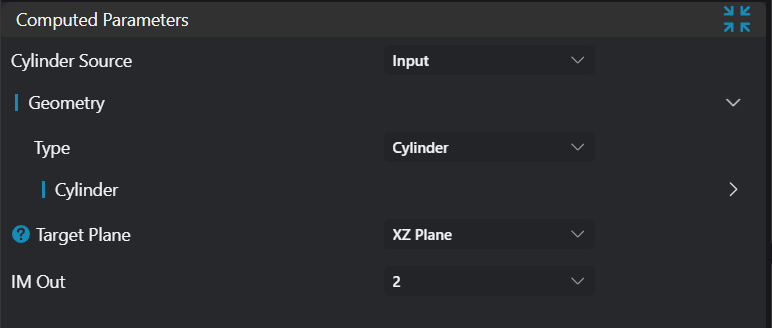

Cylinder Source: Input

Parameter	Range	Default Value	Description	Illustration
Cylinder Source	Fitting/Input	Fitting	Fitting: Select the point cloud to be fitted, then fit and unwrap this portion Input: Obtain cylinder parameters from registers or manually, then unwrap the input image
Geometry		Cylinder	Set cylinder information: base circle center, radius Can bind to select fitted cylinder
Target Plane	XY Plane/XZ Plane/YZ Plane	XZ Plane	XY Plane: Unwrap point cloud to XY plane XZ Plane: Unwrap point cloud to XZ plane YZ Plane: Unwrap point cloud to YZ plane
Output Image	0-8	0	The IM number for image output

Output Parameters

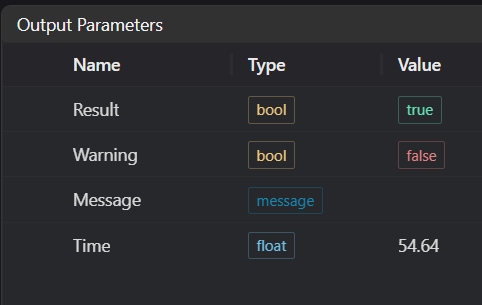

Name	Type	Range	Description
Result	bool	true/false	true for success false for failure
Warning	bool	true/false	true indicates there is a warning false indicates there is none
Message	string		Outputs success, error, or warning information; if there is no error or warning, it is empty
Time	float		Operator execution time, unit: ms

Exception Troubleshooting

No.	Exception Information	Corresponding Parameter	Solution
1	Input region type is {0}, invalid region type	Region Type	Region input type must be one of: 2D Window/2D Circular Window/2D Polygon Window/Box/Cylinder Box/Rotated Box/Point Set
2	Region is empty		1. Check if selection is empty 2. Check if point set is empty
3	Point cloud input is empty		Confirm if IM contains valid points; if no valid points, load point cloud or switch to IM with valid points
4	Point count limit invalid		Set point cloud minimum less than maximum
5	Filter parameters invalid		Adjust statistical filtering parameters: 1. Increase standard deviation multiple threshold 2. Decrease neighborhood points (neighborhood points must be less than selected point cloud count)
6	Input point cloud count exceeds limit		Adjust point count limit range or replace with point cloud that meets limits
7	Input geometry is {0}, invalid geometry type	Geometry Type	Geometry must be Cylinder
8	Input cylinder source is {0}, invalid cylinder source	Cylinder Source	Image source must be Fitting/Input
9	Input polygon vertex count less than 3, cannot form polygon		Add 2D polygon window vertices so vertex count is at least three

Example Introduction

Engineering Design

1. Select the Load Point Cloud tool to load the 3D point cloud image to be processed into IM0.

2. Select the 3D Crop tool to copy IM0 to IM1.

3. Set up the 3D Cylinder tool to fit the point cloud as a cylindrical surface.

4. Select two 3D Unwrapping tools, setting different cylinder sources for each.

Tool Usage

1. Select the input image for operation; the image number must match the IM number where the image is located in the project.

2. Set cylinder source

When setting cylinder source to Fitting, set region as Box, move the box to the position to be measured, enclosing the point cloud to be measured.

When setting cylinder source to Input, bind the cylindrical surface output from the 3D Cylinder tool as input.

Usage Tips

1. Use the ROI controller on the image window to drag or scale the box;
2. Directly modify the start or end coordinates of the box in the calculation parameters to adjust the box position and size;

3. Set parameters

4. Click Test to check if the image window and parameters meet expectations

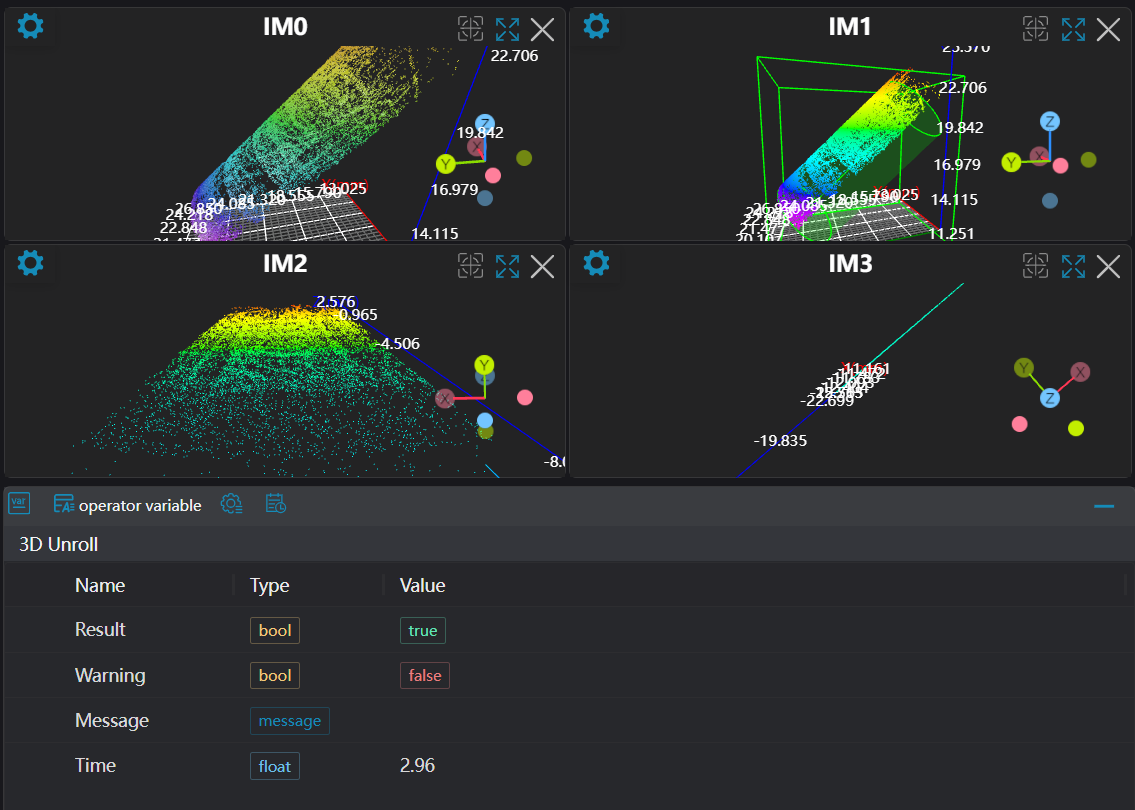

5. If there are no issues, click Save, then run the operator in the run list to view the results in the corresponding IM
