Adhesive Path Inspection - Trajectory

Operator Function

Manually select trajectory points of the adhesive path on a 2D image to measure break conditions, width, height, and edge margins of the adhesive path. Suitable for point cloud images with height transitions around the adhesive path.
Before using the operator, the adhesive path point cloud needs to be adjusted to a reference plane
Note: This operator requires ordered point cloud input and its corresponding 2D image (each point in the point cloud should correspond one-to-one with pixels in the 2D image)

Parameter Introduction

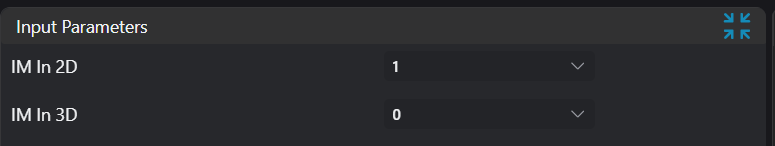

Input Parameters

Parameter	Range	Default Value	Description	Illustration
Input Image	0-8	0	The IM number for image input
Input Point Cloud	0-8	1	The IM number for point cloud input

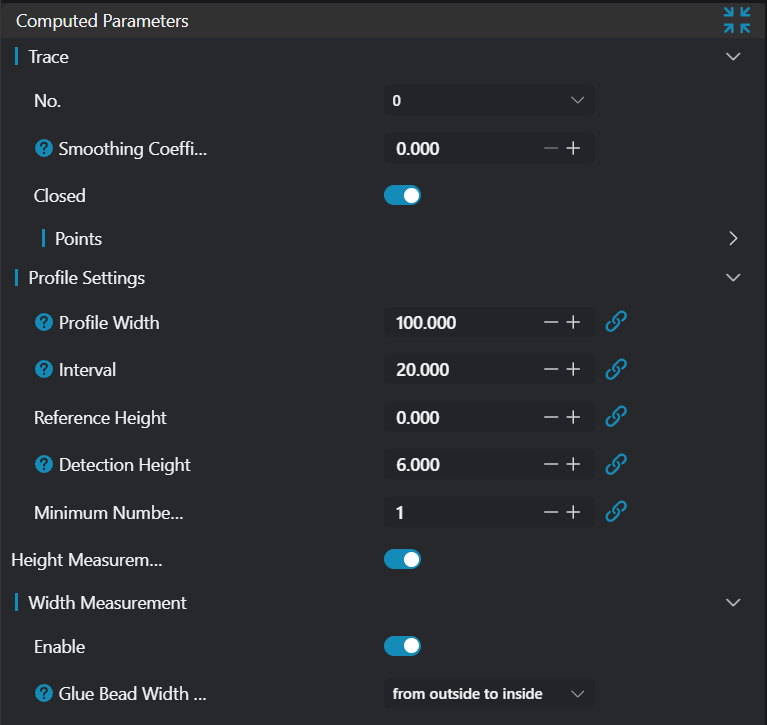

Calculation Parameters

Parameter	Range	Default Value	Description	Illustration
Trajectory			Point set selected by user on 2D image
Smoothing Factor	0.0-1.0	0.0	Smoothness of trajectory on 2D image
Contour Width		20.0	Set the width for extracting contours
Contour Interval		10.0	Set the interval for extracting contours
Reference Height		0.0	Input reference baseline for height
Detection Height		0.0	Input comparison height value to distinguish adhesive path
Minimum Points Above Detection Height		10	Set threshold for number of points in contour above detection height. If below this threshold, judged as broken adhesive
Height Measurement	true/false	false	If enabled, measure height information of adhesive path
Width Measurement			When enabled, measure adhesive path width values
Width Search Mode	Inside-Out/Outside-In	Outside-In	Set mode for searching adhesive width points. When mode is Inside-Out, search from contour center point to both ends; when mode is Outside-In, search from contour start/mid point toward center
Edge Margin Measurement	true/false		Only available when width measurement is enabled. Measure edge margins of contour (distance from contour start point to left width point and from contour end point to right width point)
Break Result Judgment			Set parameters for judging broken adhesive
Height Result Judgment			Set parameters for judging whether height meets requirements
Width Result Judgment			Set parameters for judging whether width meets requirements
Edge Margin Result Judgment			Set parameters for judging whether edge margins meet requirements
Judgment Mode	Continuous/Any	Any	Set method for judging outliers. Set this value to n. If judgment mode is Any, then if n outliers appear in all contours, the result is judged as unqualified; if judgment mode is Continuous, then if n consecutive outliers appear in consecutive contours, the result is judged as unqualified
Outlier Count			Set number of outliers. When exceeded, the result is judged as unqualified
Minimum Value		0.1	Set minimum value for height/width/edge margin to be judged as qualified
Maximum Value		1.0	Set maximum value for height/width/edge margin to be judged as qualified

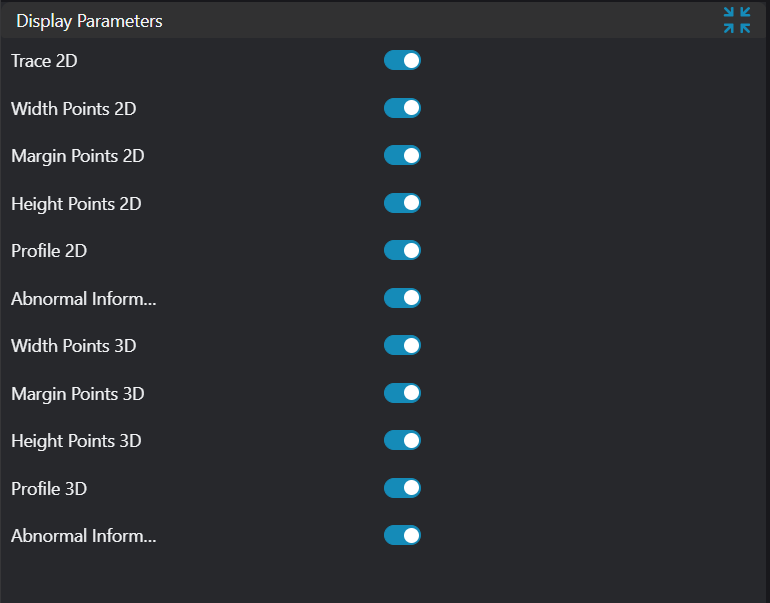

Result Display

Parameter	Range	Default Value	Description	Illustration
2D Width Points	true/false	false	Display left and right width points on 2D image (violet points)
2D Edge Margin Points	true/false	false	Display contour start points used for calculating edge margins on 2D image (valid points, blue points)
2D Height Points	true/false	false	Display height points on 2D image (green points)
2D Contour	true/false	false	Display contour lines on 2D image (red lines)
2D Break Information	true/false	false	Display break information on 2D image (red "Broken" text)
3D Width Points	true/false	false	Display left and right width points on 3D image (violet points)
3D Edge Margin Points	true/false	false	Display contour start points used for calculating edge margins on 3D image (valid points, blue points)
3D Height Points	true/false	false	Display height points on 3D image (green points)
3D Contour	true/false	false	Display contour lines on 3D image (red point cloud)
3D Break Information	true/false	false	Display break information on 3D image (red "Broken" text)

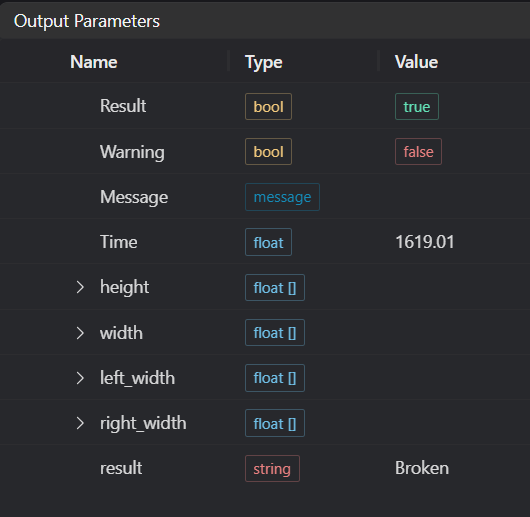

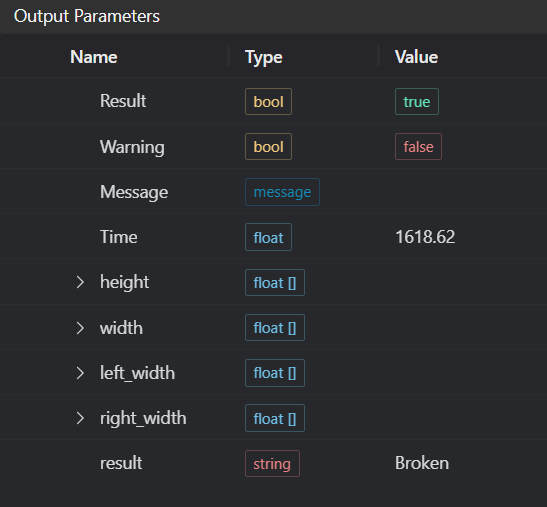

Output Parameters

Name	Type	Range	Description
Result	bool	true/false	true for success false for failure
Warning	bool	true/false	true indicates a warning false indicates none
Message	string		Output success, error, or warning messages. Empty if no error or warning
Time	float		Operator execution time, unit: ms
height	float[]		Output adhesive height
width	float[]		Output adhesive width
left_width	float[]		Output left edge margin
right_width	float[]		Output right edge margin
result	string	OK/NG/Broken	Output adhesive path inspection result

Tip

For more detailed explanations of parameter types, please refer to Type Definitions

Exception Troubleshooting

No.	Exception Information	Corresponding Parameter	Solution
1	Input image is empty		Confirm if IM contains valid 2D image
2	Input point cloud is empty		Confirm if IM contains valid 3D image
3	Input point cloud and input image don't match		Need to use corresponding point cloud and 2D image
4	Input point cloud is unordered, need ordered point cloud input!		Use ordered point cloud input
5	Input width judgment upper/lower limits invalid		Set width judgment upper limit greater than or equal to lower limit
6	Input height judgment upper/lower limits invalid		Set height judgment upper limit greater than or equal to lower limit
7	Input edge margin judgment upper/lower limits invalid		Set edge margin judgment upper limit greater than or equal to lower limit
8	Input break judgment parameters invalid		Appropriately reduce outlier count
9	Input break judgment mode is {0}, invalid break judgment mode	Break Judgment Mode	Select mode as Any/Continuous
10	Input width judgment parameters invalid		Appropriately reduce outlier count
11	Input width judgment mode is {0}, invalid width judgment mode	Width Judgment Mode	Select mode as Any/Continuous
12	Input height judgment parameters invalid		Appropriately reduce outlier count
13	Input height judgment mode is {0}, invalid height judgment mode	Height Judgment Mode	Select mode as Any/Continuous
14	Input edge margin judgment parameters invalid		Appropriately reduce outlier count
15	Input edge margin judgment mode is {0}, invalid edge margin judgment mode	Edge Margin Judgment Mode	Select mode as Any/Continuous
16	Input width measurement mode is {0}, invalid width measurement mode	Width Measurement Mode	Select width measurement mode as Inside-Out/Outside-In
17	Input trajectory points {0} and {1} coincide	Trajectory Point Numbers	Change these two trajectory points so they don't coincide
18	Input trajectory point count is too low		Increase number of trajectory points
19	Input trajectory points {0} and {1} exceed image bounds	Trajectory Point Numbers	Move these two trajectory points within image bounds

Example Introduction

Engineering Design

1. Select Load Point Cloud tool to load required 3D point cloud image into IM1;

2. Select Point Cloud Ordering tool to order point cloud in IM1 and save to IM1;

3. Select Point Cloud to Depth tool to convert point cloud in IM1 to depth map and save to IM0;

4. Select Adhesive Path Inspection - Trajectory tool.

Tool Usage

5. Select input image for operation. Image number must match IM number where image is located in project.

6. Set parameters.

7. Check desired display content in Result Display section.

8. Click Test to check if image window and parameters meet expectations.

9. If everything is correct, click Save, then run operator in run list. View results in corresponding IM.
