3D Contour Extraction

Operator Function

This operator extracts contours from the input point cloud based on user-defined cutting plane, cutting position, and cutting width. Running the operator will plot the extracted points on the image and output them to the XY plane of the input image.

As shown in the figure, setting the cutting plane to XZ plane will plot the extracted points on the input image:
Display extracted contour points on the input image:

Parameter Introduction

Input Parameters

Parameter	Range	Default Value	Description	Illustration
Input Image	0-8	0	The IM number for image input

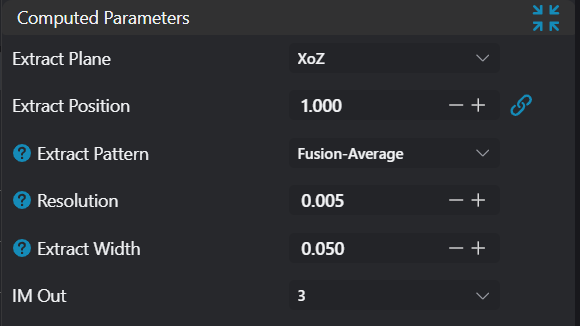

Calculation Parameters

Parameter	Range	Default Value	Description	Image
Extraction Plane	XY Plane/XZ Plane/YZ Plane	XZ Plane	Select cutting plane; will cut the plane in this direction XY Plane: Set cutting plane as XY plane XZ Plane: Set cutting plane as XZ plane YZ Plane: Set cutting plane as YZ plane
Extraction Position		0.000	Set cutting plane Value: Perform cutting at this value position
Extraction Mode	Nearest/Fusion-Average	Fusion-Average	These modes only support extraction planes XZ plane and YZ plane Nearest: This mode only supports organized point cloud as input, will extract the contour closest to the extraction position Fusion (Average): This mode will extract points within the set extraction width, outputting contours fitted by averaging based on extraction width and resolution
Resolution		0.100	Enabled when extraction mode is Fusion (Average) When extraction plane is XZ plane, this resolution is the X-direction resolution of fitted contour When extraction plane is YZ plane, this resolution is the Y-direction resolution of fitted contour
Extraction Width		0.030	Set cutting width value; points within the range of ± this value from the cutting position will be used as extracted contour points
Output Image	0-8	0	The IM number for image output

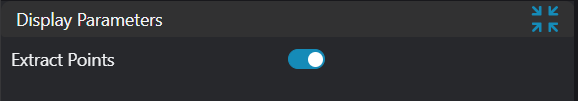

Result Display

Parameter	Range	Default Value	Description	Illustration
Extracted Points	true/false	false	If enabled, display extracted points in the input image

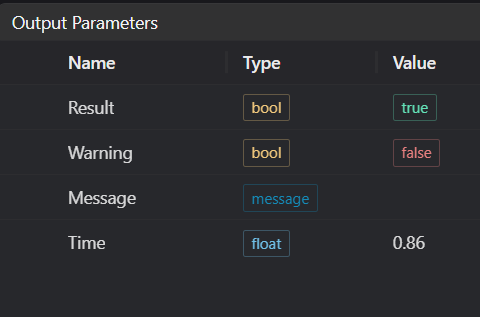

Output Parameters

Name	Type	Range	Description
Result	bool	true/false	true for success false for failure
Warning	bool	true/false	true indicates there is a warning false indicates there is none
Message	string		Outputs success, error, or warning information; if there is no error or warning, it is empty
Time	float		Operator execution time, unit: ms

Tip

For more detailed explanations of parameter types, please refer to Type Definitions

Exception Troubleshooting

No.	Exception Information	Corresponding Parameter	Solution
1	Extracted contour is empty	None	Adjust region start and end parameters to ensure valid points exist in selected area
2	Organized point cloud required as input	None	Input using organized point cloud image
3	Input extraction mode is {0}, invalid extraction mode	Extraction Mode	Select extraction mode as Fusion-Average/Nearest
4	Input extraction plane is {0}, invalid extraction plane	Extraction Plane	Select extraction plane as XY Plane/XZ Plane/YZ Plane
5	No contour exists at input extraction position or resolution is much smaller than point spacing	None	Adjust extraction position or resolution
6	Input point cloud is empty	None	Confirm if IM contains valid points; if no valid points, load point cloud or switch to IM with valid points

Example Introduction

Engineering Design

1. Select the Load Point Cloud tool to load the 3D point cloud image to be processed into IM0;

2. Select the 3D Contour Extraction tool

Tool Usage

1. Select the input image for operation; the image number must match the IM number where the image is located in the project.

2. Set parameters

3. Check the content you want to display in the result display section

4. Click Test to check if the image window and parameters meet expectations

5. If there are no issues, click Save, then run the operator in the run list to view the results in the corresponding IM

Original Image

Extracted XY Plane Contour

Extracted YZ Plane Contour

Extracted XZ Plane Contour
